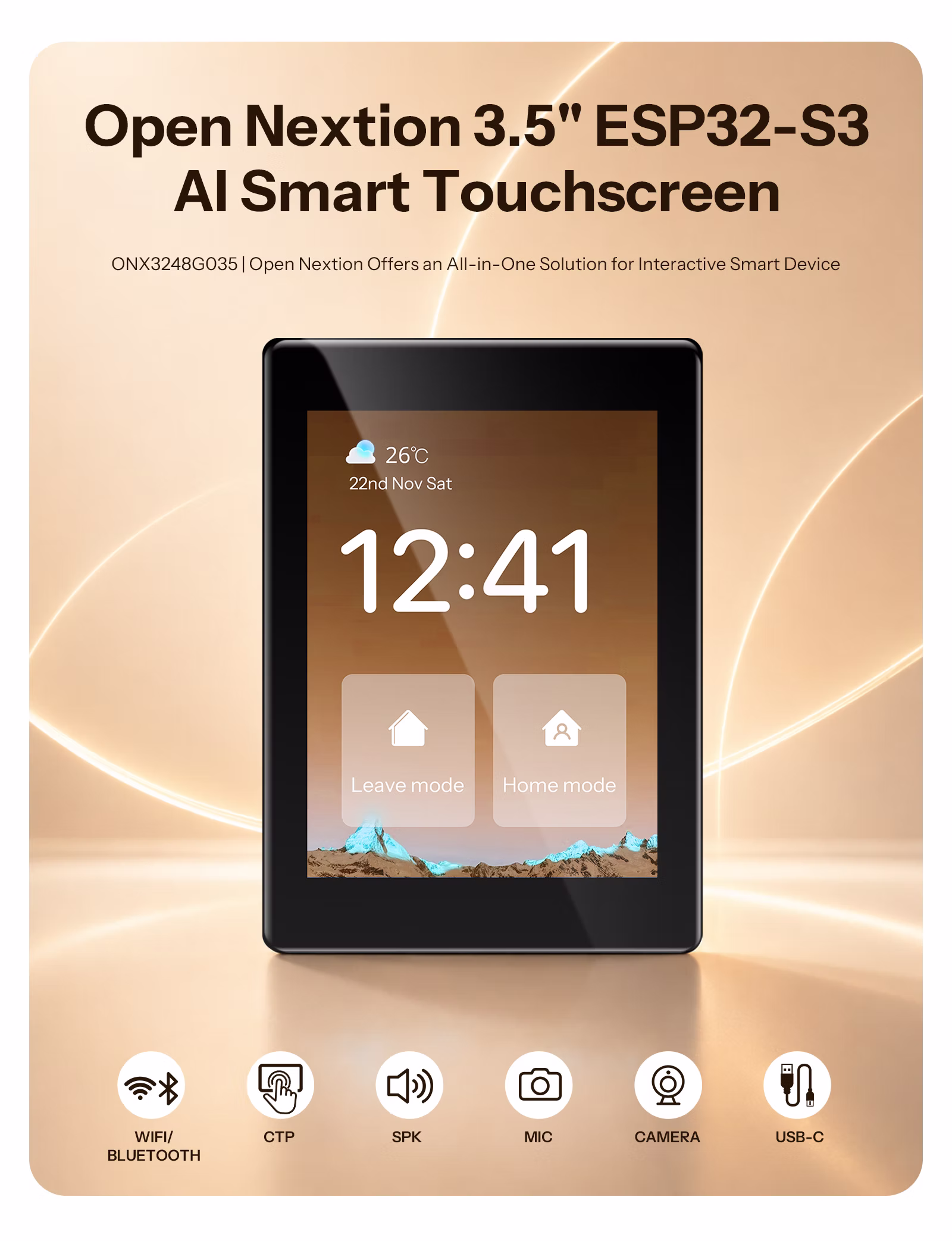

ONX3248G035-Open Nextion Genius Series 3.5″ ESP32-S3 AI Smart Touchscreen
Original price was: USD$34.90.USD$22.69Current price is: USD$22.69.
The ONX3248G035 is an ESP32-S3 smart display with a CTP touchscreen, and its SKU is 6979033600171.
● Out‑of‑the‑box: Access the Open Nextion application platform with continuously updated apps – no coding required for flashing.
● AI‑ready: Powered by ESP32-S3R8 with built-in AI acceleration, supporting AI Vibe Coding to bring your ideas to life faster.
● Wireless connectivity: 2.4GHz Wi‑Fi and Bluetooth 5 (LE) for stable wireless links.
● Extensive expansion: USB‑C, GPIO, I2C, UART, plus interfaces for camera, mic, speaker, RTC battery, Li‑ion battery, and microSD slot – enabling voice interaction, data storage, and multi‑sensor expansion.
● Development support: Full documentation, LVGL compatibility, and support for ESP‑IDF, Arduino IDE, and other mainstream environments.
ONX3248G035 Certification and Documents
- Wiki
- Schematic Diagram
- PCB Bitmap
- Dimension
- LTA Announcement
- CE Certification
- ROHS Certification
- FCC Certification
Open Nextion Support
Additional information
| Weight | 115 g |
|---|---|
| Dimensions | 145 × 102 × 32 mm |
| Display Size | Display Size 3.5" |
| Resolution | 320*480 |
| Color | 262K |
| Brightness | 300nit |
| Touch Panel | CTP |
| MCU | 240 MHz |
| Flash | 16 MB |
| SRAM | 512 KB |
| PSRAM | 8 MB |
| ROM | 384 KB |
| Interfaces | USB-C(USB to UART), UART0, UART1, I2C, Camera, Microphone, Battery, RTC Battery, SPK |
| GPIOs | 14, IO12-IO13, IO17-IO21, IO38-IO40, IO42, IO45, IO47-IO48 support input and output. |
| MicroSD card | Yes |
| RTC | Yes |
| Input Power | DC 5V 1A |
| Storage Temperature | -30°C ~ 80°C |
| Working Temperature | -20°C ~ 70 °C |
| Display Type | TN |
| Gross Weight | 115g |
| Package Dimensions | 145x102x32mm |
