ONX2424G013- Open Nextion 1.28″ Genius Series ESP32-S3 IPS Smart Knob Screen

Name: ONX2424G013- Open Nextion 1.28" Genius Series ESP32-S3 IPS Smart Knob Screen
SKU: 6979033600737
Price: 23.90 USD
Availability: InStock

USD$23.90

[jgm-review-widget]

[jgm-preview-badge]

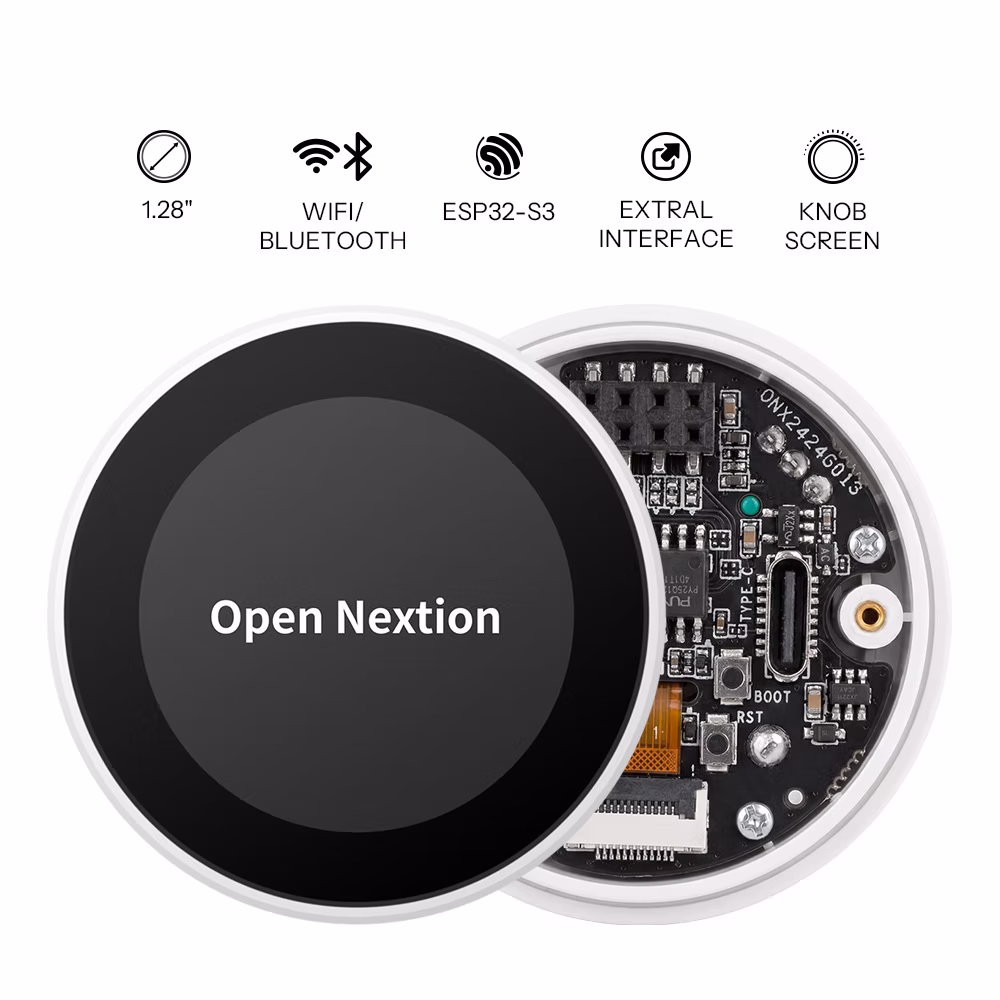

The ONX2424G013 is an ESP32-S3 Knob Screen with an IPS LCD, and its SKU is 6979033600737.

Interaction & Connectivity: IPS rotary display (262K) with press/rotate, tactile. Wi-Fi & BLE 5.0, fast/low-power, for smart home/industrial/IoT.

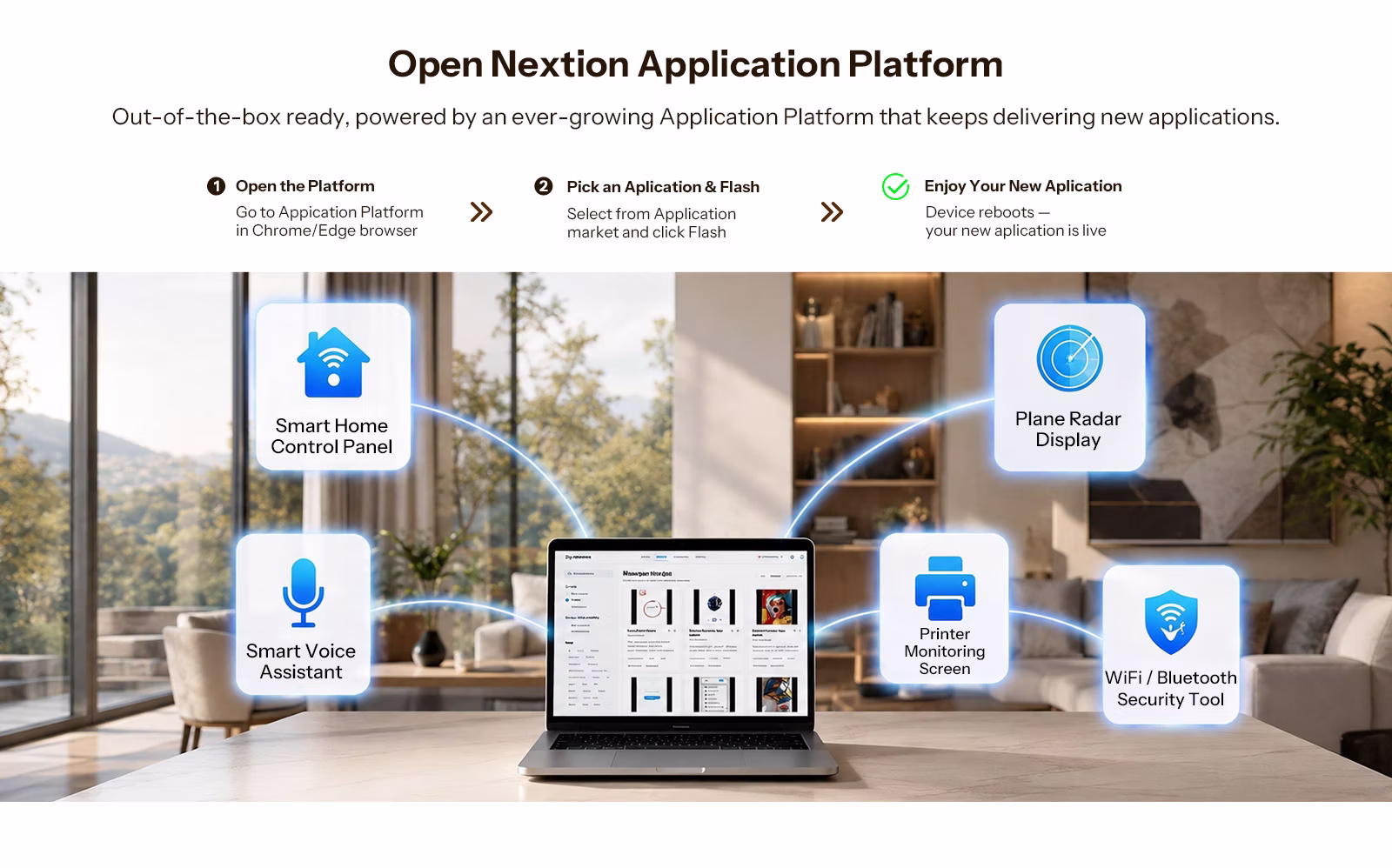

Out‑of‑the‑box: Access the Open Nextion application platform with continuously updated apps – no coding required for flashing.
AI‑ready: Powered by ESP32-S3R8 with built-in AI acceleration, supporting AI Vibe Coding to bring your ideas to life faster.

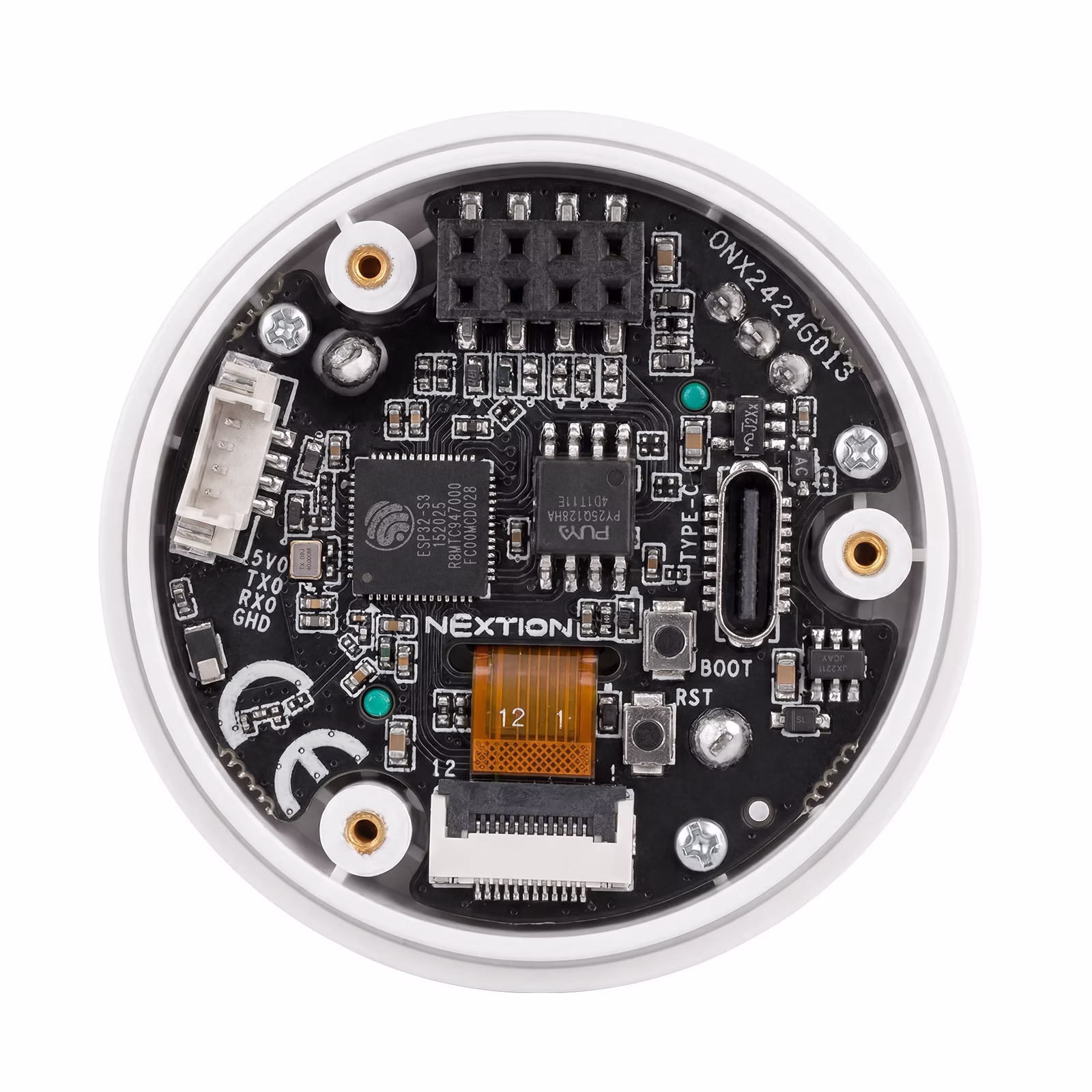

Development support: 5V USB-C, UART, 6×GPIOs for connecting sensors/LEDs/debugging devices. Support for ESP-IDF, Arduino IDE, and other mainstream development environments.

ONX2424G013- Open Nextion 1.28" Genius Series ESP32-S3 IPS Smart Knob Screen

ONX2432G028-Open Nextion Genius Series 2.8" ESP32-S3 AI Smart Touchscreen

1 × ONX2432G028-Open Nextion Genius Series 2.8" ESP32-S3 AI Smart Touchscreen

ONX3248G035-Open Nextion Genius Series 3.5" ESP32-S3 AI Smart Touchscreen

1 × ONX3248G035-Open Nextion Genius Series 3.5" ESP32-S3 AI Smart Touchscreen

Secure Payment:

Customer Service Guarantee

Description
Additional information

ONX2432G028 Certification and Documents

Open Nextion Support

Additional information

Weight	88 g
Dimensions	106 × 100 × 42 mm
Display Size	1.28"
Resolution	240*240
Color	262K
Brightness	300nit
Wireless Protocol	WIFI IEEE 802.11/b/g/n 2.4G
Display Type	IPS
Display Drive	GC9A01
MCU	240 MHz
Flash	16 MB
SRAM	512 KB
ROM	384 KB
Interfaces	USB-C, UART, 6*GPIOs ( IO10-IO11, IO17-IO20 support input and output.)
Input Power	DC 5V 1A
Storage Temperature	-30°C ~ 80°C
Working Humidity	10% ~ 90% RH
Working Temperature	-20°C ~ 70 °C
Gross Weight	88 g
Package Dimensions	48.0×48.0×28.0mm
