NX4832K035 – Nextion 3.5” Enhanced Series HMI Touch Display
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.
Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
Nextion Editor Features
Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.
Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of "Arial" with Height "24" and Encoding "UTF-8"
25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way
Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.
Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.
Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows
Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads
Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
1× 3.5" Nextion Enhanced HMI Display
1× power supply test board
1× 4-pin grove cable
Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
|Dimensions||101 × 55 × 12 mm|
8, IO0-IO7 support input, output and component binding event, IO4-IO7 support PWM
DC 5V 500mA
-30 ~ 85 °C
-20 ~ 70 °C
|Nextion Editor Components||
Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode
ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis
J'ai commandé et reçu l'écran NX4832K035 - HMI Touch Display.
Il s'agit d'un très bon produit (performance et possibilité) mais NEXTION publie très très peu de documentation (et aucune en français). Il faut donc jongler avec les tuto et on n'utilise donc pas toute les capacités de l'écran.
Les exemples et démo sur GitHub (https://github.com/itead/ITEADLIB_Arduino_Nextion) sont obsolètes et ne fonctionnent pas avec l'éditeur 1.63.3
the screen is practical but is very poorly documented, it is always necessary to refer to the internet to find a command that is seen and found elsewhere.
I use it with an arduino and I only use, I think, 10% of what I would like to do with it, because it is very poorly documented (without really any example for each existing command).
like for example how to get a ".val" from another page (no example)
it lacks a very big documentation of use, so that it approaches, the small user.
Sorry for the inconvenience, our customer service team will contact you to help you solve this issue.

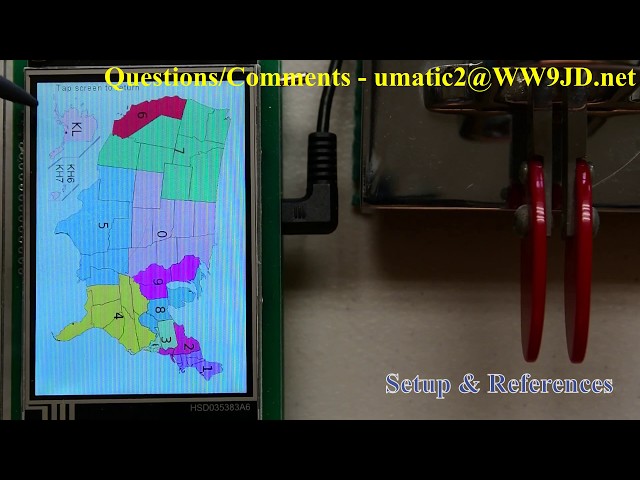

I use this display on my Arduino-based Morse code keyer. It adds versatility with a big programming overhead.
