5.0” Nextion Intelligent Series HMI Touch Display with enclosure

$67.90$74.90

NX8048P050-011C-Y is a Nextion Intelligent series 5.0” capacitive HMI touchscreen with enclosure and SKU is 6920075776553

NX8048P050-011R-Y is a Nextion Intelligent series 5.0” resistive HMI touchscreen with enclosure and SKU is 6920075776539

Secure Payment:

Customer Service Guarantee

Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

Nextion Editor Features
Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.

Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of "Arial" with Height "24" and Encoding "UTF-8"

25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way

Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows

Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

Additional information

Weight N/A
Dimensions N/A
Brand

Model

NX8048P050

Display Size

5.0″

Resolution

800*480

Touch Panel

RTP/CTP

MCU

200 MHz

Flash

128 MB

SRAM

512KB

EEPROM

1024 Byte

GPIOs

8, IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM

RTC

Yes (CR1220)

Input Power

DC 5V 1A

USART Port

XH2.54 4P

Storage Temperature

-30 ~ 85 °C

Working Temperature

-20 ~ 70 °C

Nextion Editor Components

Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode, Switch, ComboBox, TestSelect, SLText, DataRecord, FileStream, Gmov, Video, Audio, ExPicture

Component Opaqueness

Yes

Loading Effect

Yes

Animation

Yes

Video

Yes

Audio

Yes

Character Encoding

ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis

Anti-aliasing font

Yes

Product Dimensions

https://cdn.nextion.tech/wp-content/uploads/2020/12/NX8048P050-011X-Y-Dimension.pdf

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
J
JORGE ALBERTO SANCHEZ GONZALEZ
amazing

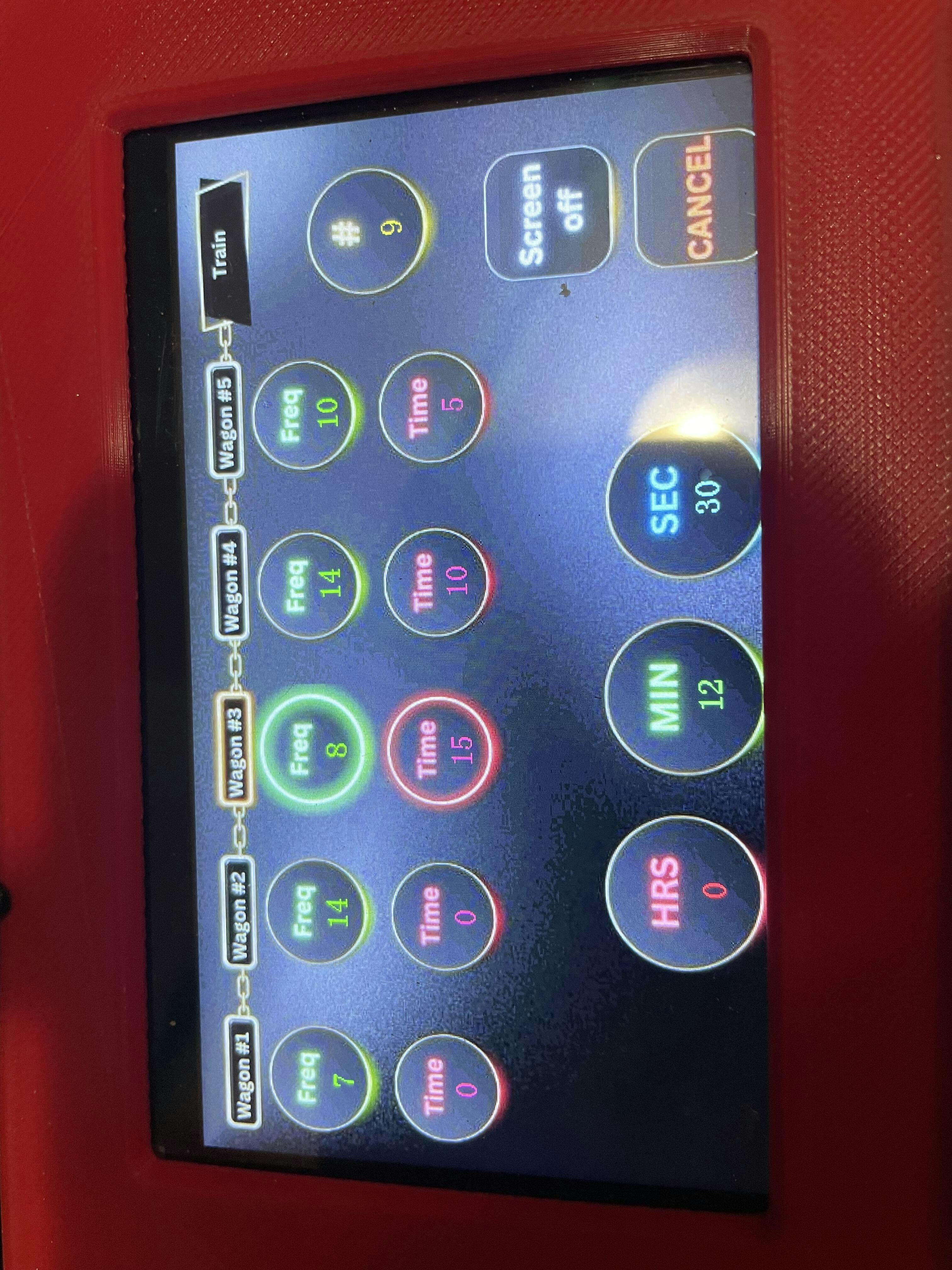

I use this screens for my industrual projects, its really amazing!

B
Bernie Harrison
I need more skill

This was my first Nextion screen. It was a challenge to learn new language and procedures. Made much use of Youtube and searching.
Used a consultant ... Damian... built my knowledge ... had a great time learning and watching my ideas convert into action.
So many options that a newbie can get discouraged.

Sorry for the inconvenience, our customer service team will contact you to help you solve this issue.

R
Rian van Kessel
Goed werkend scherm

Scherm werkt naar behoren. Makkelijk te programmeren. Je moet er niet te schuin op kijken want dan wordt het donker en de kleuren veranderen. Als je normaal recht op het scherm kijkt ziet het er geweldig uit.
