ONX3248G035-Open Nextion 3.5″ Genius Series ESP32-S3 LCD Touchscreen Development Board

Name: ONX3248G035-Open Nextion 3.5" Genius Series ESP32-S3 LCD Touchscreen Development Board
SKU: 6979033600171
Availability: InStock

Original price was: USD$34.90.Current price is: USD$22.69.

The ONX3248G035 is an ESP32-S3 development board with a CTP touchscreen, and its SKU is 6979033600171.
● Supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE).

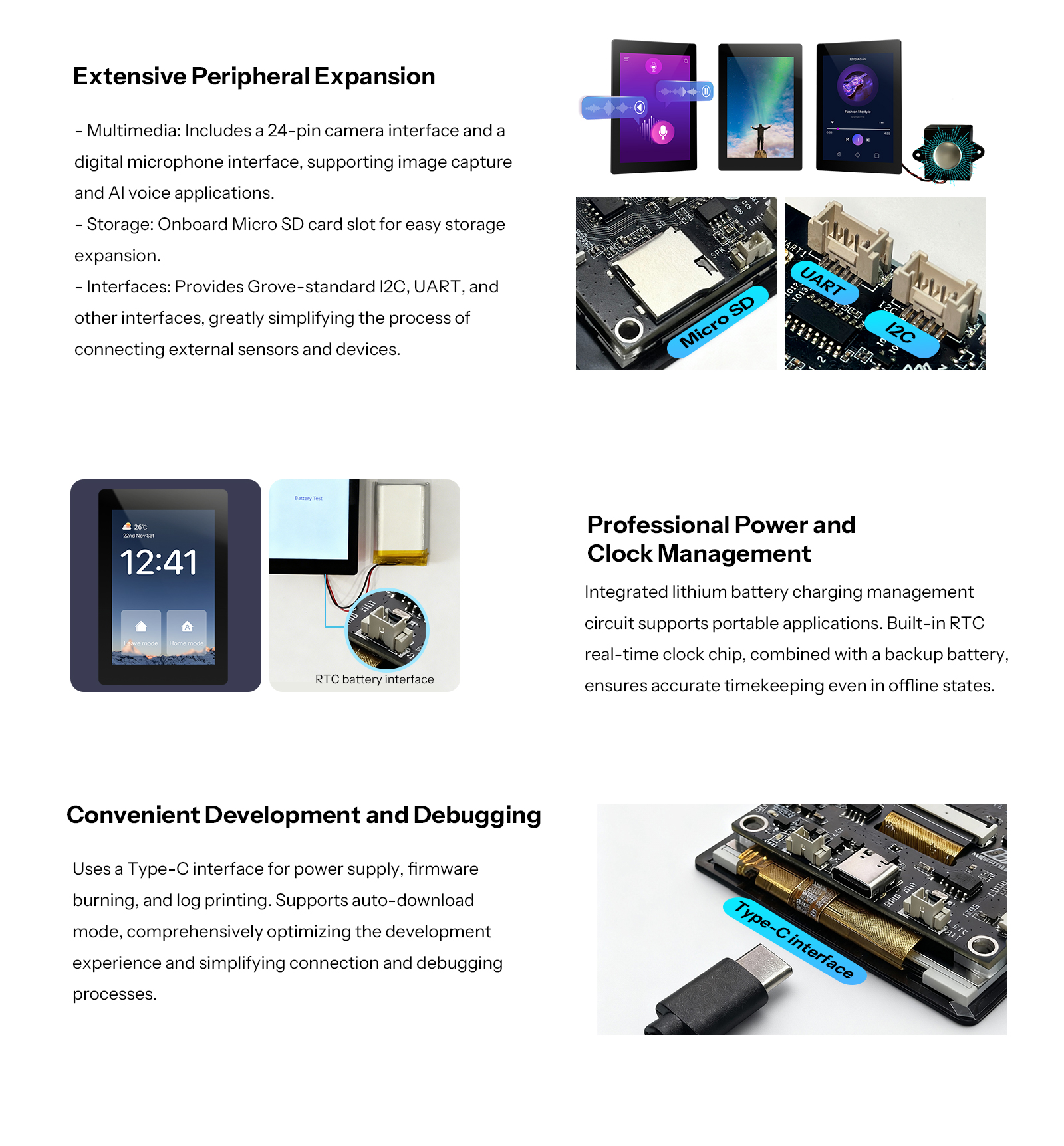

● Supports external cameras, digital microphones, speakers, and RTC batteries.
● Onboard multiple GPIO ports, I2C, and UART interfaces, supporting various functions.
● Compatible with open-source development environments like ESP-IDF/Arduino-IDF and the open-source graphics library LVGL for interface design.

Secure Payment:

Customer Service Guarantee

Description
Additional information
Reviews&QA

ONX3248G035 Certification and Documents

Open Nextion Support

Additional information

Weight	115 g
Dimensions	145 × 102 × 32 mm
Display Size	Display Size 3.5"
Resolution	320*480
Color	262K
Brightness	300nit
Touch Panel	CTP
MCU	200 MHz
Flash	16 MB
SRAM	512 KB
PSRAM	8 MB
ROM	384 KB

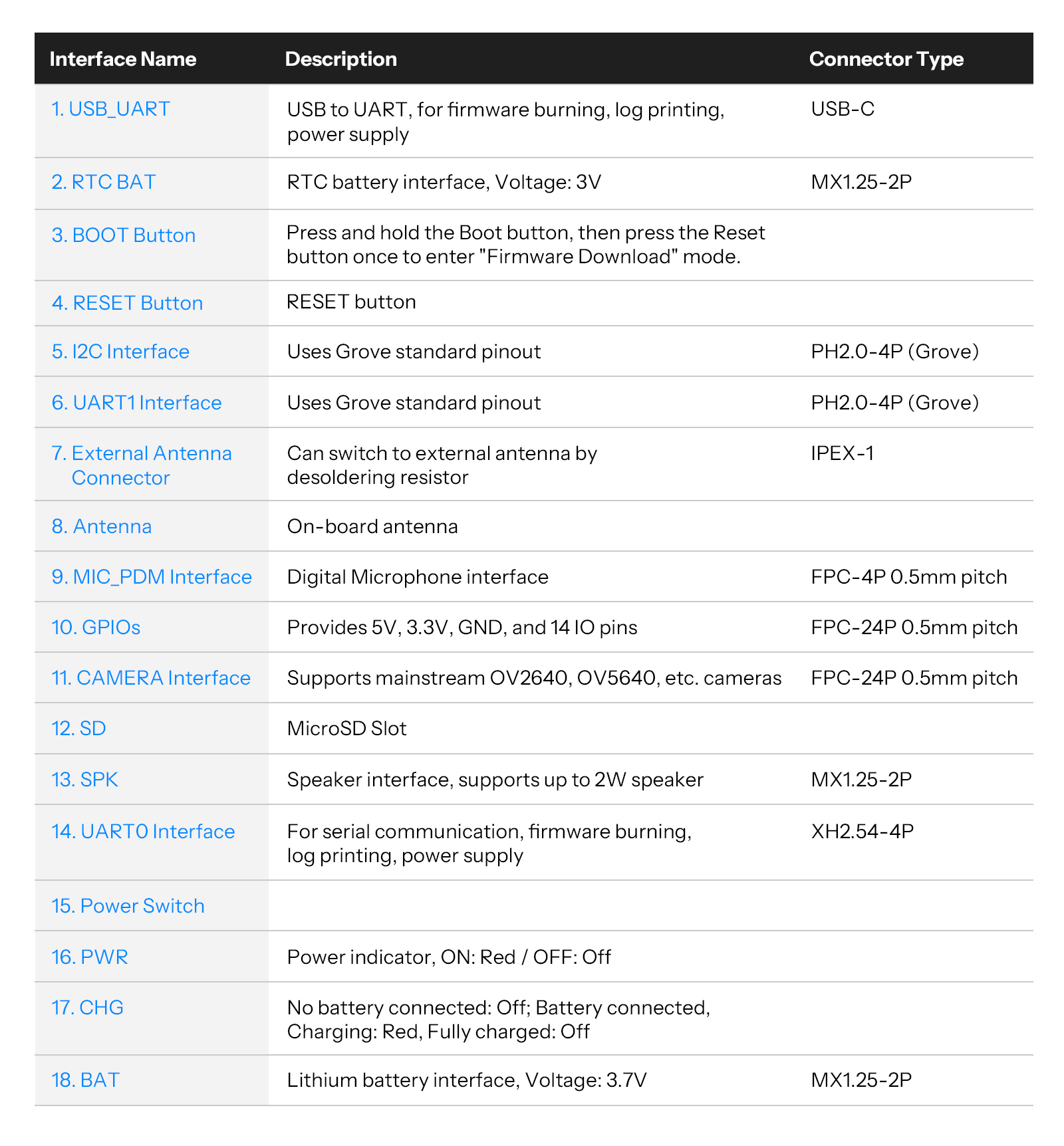

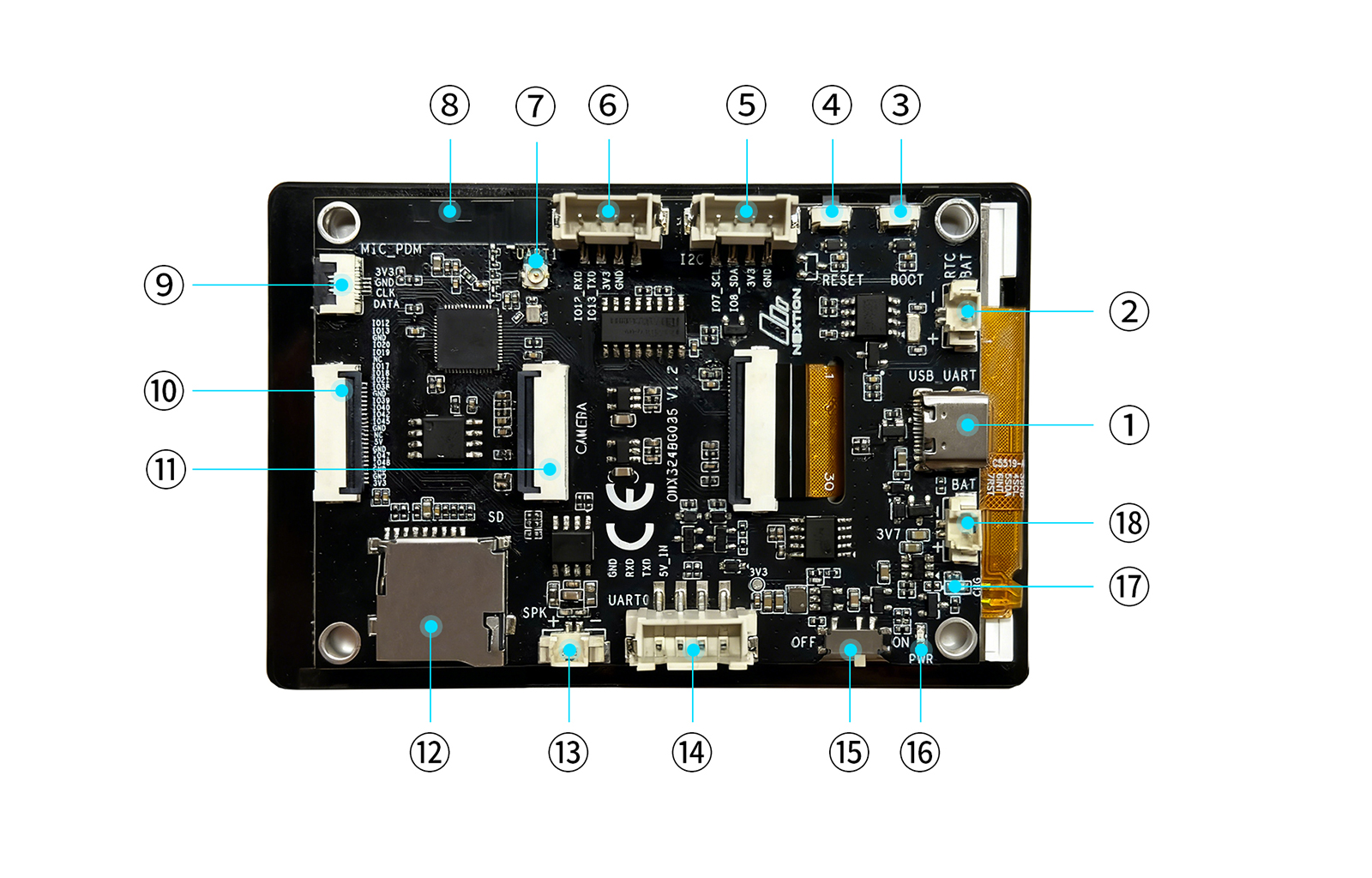

Interfaces	USB-C(USB to UART), UART0, UART1, I2C, Camera, Microphone, Battery, RTC Battery, SPK
GPIOs	14, IO12-IO13, IO17-IO21, IO38-IO40, IO42, IO45, IO47-IO48 support input and output.
MicroSD card	Yes
RTC	Yes
Input Power	DC 5V 1A
Storage Temperature	-30°C ~ 80°C
Working Temperature	-20°C ~ 70 °C
Display Type	TN
Gross Weight	115g
Package Dimensions	145x102x32mm
